একটি IP5X ডাস্ট টেস্ট চেম্বার কীভাবে ধূলি সুরক্ষা যাচাই করে?

Products used in automotive, outdoor, industrial, and electronic applications may be exposed to dust during transportation, operation, or long-term service. If dust enters an enclosure, it can affect sensitive components, reduce reliability, or interfere with normal operation.

For manufacturers, the key question is:

How can you verify that an enclosure provides the required level of protection against dust ingress?

An IP5X ডাস্ট টেস্ট চেম্বার provides a controlled environment for evaluating enclosure protection against dust according to the applicable IP testing requirements.

Need a test chamber for IP5X testing? Request a quote in 24 hours.

উদ্ধৃতি অনুরোধ করুন → ellen@lib-industry.com

What Does IP5X Mean?

IP5X is part of the Ingress Protection (IP) rating system defined by IEC 60529.

The first digit "5" indicates protection against dust ingress. IP5X is generally described as ধুলো-প্রতিরোধী: dust ingress is not completely prevented, but the amount entering the enclosure must not interfere with satisfactory operation or safety under the specified test conditions.

This makes IP5X particularly relevant for products designed for environments where airborne dust is present.

সাধারণ অ্যাপ্লিকেশনগুলির মধ্যে রয়েছে:

• Automotive electronic components
• বৈদ্যুতিক ঘের
• বহিরঙ্গন সরঞ্জাম
• শিল্প নিয়ন্ত্রণ
• Sensors and instruments
• ভোক্তা ইলেকট্রনিক্স

If a product requires a higher level of dust protection, IP6X should be evaluated separately because IP6X requires the enclosure to be dust-tight.

How Is an IP5X Dust Test Performed?

An IP5X test exposes the specimen to circulating dust inside a controlled test chamber.

The chamber uses a dust circulation system to keep the specified test dust suspended around the specimen. The enclosure is positioned according to the applicable test method, and dust exposure is maintained for the required test duration.

A typical dust test chamber includes:

• Sealed test enclosure
• Dust circulation or agitation system
• Dust collection and recovery system
• Specimen support
• প্রোগ্রামেবল টাইমার
• পর্যবেক্ষণ উইন্ডো
• নিয়ন্ত্রণ ব্যবস্থা

After exposure, the specimen is inspected to determine whether dust has entered the enclosure and whether any ingress affects the required protection or operation.

The exact dust type, quantity, exposure duration, and evaluation method should always be determined according to the applicable standard and product test requirement.

What Should You Look for in an IP5X Dust Test Chamber?

Not every dust chamber is configured in the same way. Before purchasing equipment, manufacturers should consider several practical requirements.

1. Dust Circulation

The chamber should provide consistent dust distribution around the specimen so that different tests can be performed under repeatable conditions.

2. Chamber Size

The workspace should accommodate the product, fixtures, and any required test accessories without unnecessarily increasing the chamber volume.

3. Dust Recovery

A suitable dust recovery system allows the test material to be collected and reused where appropriate, helping simplify chamber operation and maintenance.

৬. নিয়ন্ত্রণ এবং পর্যবেক্ষণ

A programmable controller should allow operators to set and monitor test duration and other applicable parameters.

২. মান সামঞ্জস্যতা

For IP5X applications, the equipment should be configured around the applicable requirements of আইইসি এক্সএনএমএক্স. Depending on the application, other environmental or dust-test standards may also need to be considered.

How Does LIB Industry Support IP5X Testing?

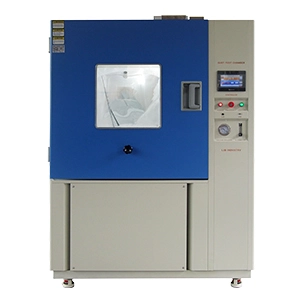

LIB ইন্ডাস্ট্রি প্রদান করে IP5X ডাস্ট টেস্ট চেম্বার designed for controlled dust-ingress testing.

The chamber uses a circulating dust system to expose specimens uniformly within the test workspace. The system can be configured according to specimen dimensions and testing requirements.

পরীক্ষার এলাকা	ল্যান এবং ইউএসবি	নিয়ামক

মূল বৈশিষ্ট্যগুলির মধ্যে রয়েছে:

• প্রোগ্রামেবল টাচস্ক্রিন নিয়ন্ত্রণ
• নিয়ন্ত্রিত ধূলিকণা সঞ্চালন
• Dust recovery system
• SUS304 স্টেইনলেস স্টিলের অভ্যন্তর
• পর্যবেক্ষণ উইন্ডো
• Adjustable test duration
• Customized chamber dimensions
• সুরক্ষা সুরক্ষা ব্যবস্থা

LIB Industry can also provide customized fixtures and chamber configurations for different product sizes and laboratory workflows.

The equipment can be configured for testing based on আইইসি এক্সএনএমএক্স and applicable environmental testing requirements such as IEC 60068-2-68, depending on the customer's test program.

LIB Industry provides IP5X dust test chambers for controlled dust-ingress testing, with customizable chamber size, dust circulation, and specimen fixtures. Check specifications and pricing → ডাস্ট টেস্ট চেম্বার

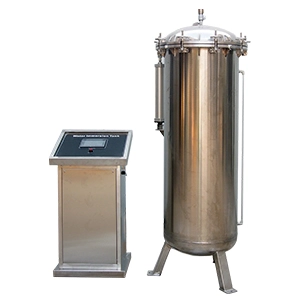

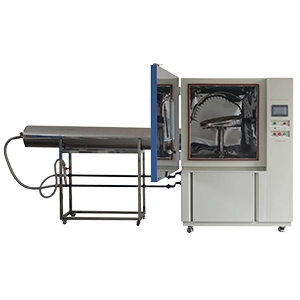

Which LIB Industry Products Can Support Ingress Protection Testing?

Why Choose LIB Industry for IP5X Testing?

LIB Industry has provided environmental simulation and reliability test equipment since 2012, serving manufacturers and laboratories in different industries.

For IP5X testing, LIB Industry can provide more than a standard chamber. The engineering team can recommend the configuration based on:

• প্রয়োজনীয় আইপি রেটিং
• পন্যের মাত্রা
• পরীক্ষার মান
• নমুনার পরিমাণ
• পরীক্ষার ফ্রিকোয়েন্সি
• Required fixtures

LIB Industry also provides ৩ বছরের ওয়ারেন্টি এবং আজীবন সার্ভিস সাপোর্ট, including technical assistance, installation support, and long-term maintenance.

FAQ

What does IP5X mean?

IP5X indicates that an enclosure is protected against dust ingress to the level specified by the applicable IP test requirements. It is a dust-protection rating under IEC 60529.

How long does an IP5X dust test take?

The test duration depends on the applicable test method and product requirements. The chamber should therefore be configured according to the relevant standard rather than assuming a single universal duration.

IP5X এবং IP6X এর মধ্যে পার্থক্য কী?

IP5X provides dust protection but does not require the enclosure to be completely dust-tight. IP6X represents a higher level of protection and requires the enclosure to be dust-tight under the specified test conditions.

Can the same chamber test IP5X and IP6X?

Yes. A properly configured dust test chamber can support both IP5X and IP6X testing, provided the test setup and evaluation procedures meet the applicable requirements.

What information should I provide when requesting an IP5X chamber?

আপনার প্রদান product dimensions, required IP rating, applicable standard, specimen quantity, and testing frequency. LIB Industry can use this information to recommend a suitable chamber configuration.
